Complete containerised water treatment solutions with integrated pumps, ancillaries, piping, and SCADA automation. Pre-engineered, factory-tested, and ready for immediate deployment worldwide.
Containerised chemical dosing: pH, coagulation, AOP oxidation, biological nutrients, MBR CIP, RO antiscalant.
Containerised oil separation: CPI, API, DAF, hydrocyclones, membrane separation, electrocoagulation.
Containerised SBR systems for variable flows, batch discharge, nutrient removal.
Containerised MBR systems with submerged UF membranes. High-quality effluent for direct reuse.
From process design and equipment supply through installation, commissioning and handover, we deliver complete treatment plants as a single-responsibility turnkey package — one contract, one accountable partner, and a defined performance guarantee.
Explore Turnkey DeliveryHover and click components to explore equipment details and navigate to relevant pages

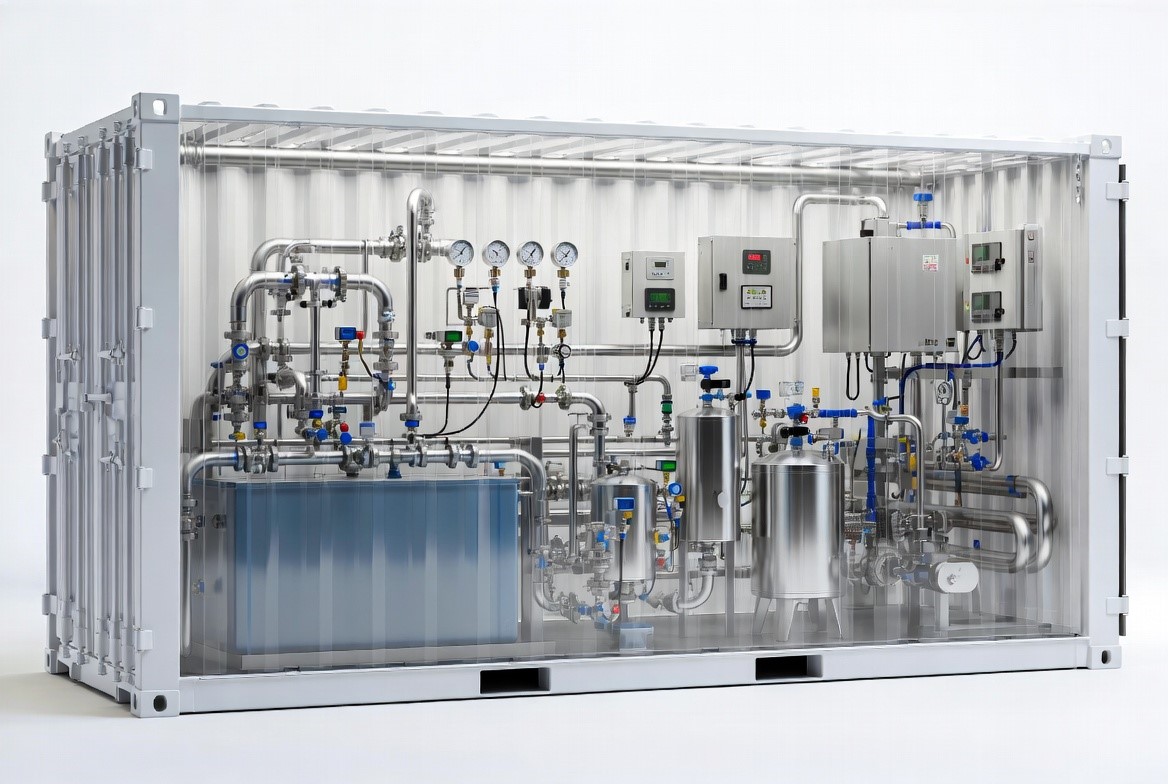

Our containerised systems arrive factory-built, pre-tested, and ready for rapid deployment. Every unit is engineered for immediate operation with minimal civil works required.
Central control panel with PLC, HMI touchscreen, and remote monitoring connectivity. Manages all process parameters, alarms, and data logging.
Coagulant and flocculant preparation and dosing systems with peristaltic metering pumps, day tanks, and automated pH control.
Stainless steel centrifugal feed pump with VFD control and flowmeter. Delivers raw wastewater at controlled flow rates.
Oil-free air compressor for the dissolved air flotation system. Provides pressurised air (6-8 bar) for the saturation vessel.
Pressure vessel that dissolves air into recycled water at 6 bar. Releases micro-bubbles on depressurisation to float suspended solids.
Multistage centrifugal pump for the DAF air dissolution loop. Delivers 10-30% of feed flow to the saturation vessel at 6 bar.
Primary separation chamber with white water distribution system, sludge scraper, and effluent weir. Handles TSS up to 5,000 mg/L.
Inclined plate pack for enhanced solids settling. 60-degree plate angle with counter-current flow pattern for high-rate clarification.
Pressurised multimedia filtration vessel with anthracite, sand, and garnet media for polishing effluent to less than 5 mg/L TSS.
Medium-pressure UV lamps for bacterial disinfection. UV dose monitored with UVT sensor for guaranteed 4-log pathogen reduction.
Buffer tank for treated water before discharge or reuse. Level-controlled with overflow protection and sampling point.
Thickened sludge collection tank with mixer and level sensors. Connects to dewatering equipment or tanker discharge.
Progressive cavity pump for transferring thickened sludge to the holding tank or dewatering unit. VFD controlled for variable flow.
Multistage centrifugal pump for the DAF air dissolution loop. Delivers 10-30% of feed flow to the saturation vessel at 6 bar.
Moving Bed Biofilm Reactor with Kaldnes K1 media, fine bubble aeration diffusers, and DO control. For BOD/COD and nutrient removal.
Not sure which Process fits your application? Our comprehensive catalogue covers 13 engineered options — from primary-only separation and physico-chemical DAF to biological MBBR/MBR/SBR, advanced oxidation, electrocoagulation, membrane concentration, and thermal evaporation. Includes ISO container platform specs, flow/TSS sizing tables, oil removal technology comparisons, SCADA tier guidance, and a master quick-selection matrix matched to your wastewater characteristics and discharge requirements.
ISO Standard Container Options
External: 6.06m x 2.44m x 2.59m (L x W x H)
Internal: 5.90m x 2.35m x 2.39m (L x W x H)
Max Payload: 28,000 kg
Ideal for: DAF 1-15 m³/hr, Screens, Small Clarifiers
External: 12.19m x 2.44m x 2.59m (L x W x H)
Internal: 12.03m x 2.35m x 2.39m (L x W x H)
Max Payload: 26,000 kg
Ideal for: DAF 20-50 m³/hr, Large Clarifiers, Multi-Process
External: 12.19m x 2.44m x 2.89m (L x W x H)
Internal: 12.03m x 2.35m x 2.69m (L x W x H)
Max Payload: 26,000 kg
Ideal for: Tall Equipment, Multi-Stage Systems
Options: Open top or flat rack containers
Benefits: Easy loading of oversized equipment
Weather: Requires external enclosure
Ideal for: Large tanks, Custom configurations
Complete Systems with Pumps, Controls & Instrumentation
Rapid deployment DAF system engineered for quick implementation and easy operation. Complete with integrated saturator, flocculation tank, flotation cell, sludge handling, pumps, and SCADA control - all pre-assembled and factory-tested in a standard shipping container.
20ft Container: Max unit dimensions: 5.5m(L) x 2.2m(W) x 2.2m(H) | Working clearance: 0.5m sides, 0.3m top | Access door: 2.3m x 2.1m
40ft Container: Max unit dimensions: 11.5m(L) x 2.2m(W) x 2.2m(H) | Working clearance: 0.5m sides, 0.3m top | Access door: 2.3m x 2.1m
| Sensor | Type | Range | Output | Location |
|---|---|---|---|---|
| Feed Flow | Electromagnetic | 0-50 m³/hr | 4-20mA | Inlet line |
| Recycle Flow | Vortex/Ultrasonic | 0-15 m³/hr | 4-20mA | Recycle line |
| Inlet pH | Glass electrode | 0-14 pH | 4-20mA | Flocculation tank |
| Saturator Pressure | Pressure transmitter | 0-10 bar | 4-20mA | Saturator vessel |
| Sludge Level | Ultrasonic | 0-2m | 4-20mA | Sludge hopper |
| Float Level | Ultrasonic | 0-1m | 4-20mA | Flotation cell |
| Polymer Tank Level | Hydrostatic | 0-1.5m | 4-20mA | PPS tank |
| Air Pressure | Pressure switch | 0-10 bar | Digital | Air line |
Size your containerised DAF in seconds
Compact lamella clarifier system housed in ISO shipping container for rapid solids separation. Complete with inclined plate settlers, sludge collection system, effluent launders, and integrated control - all pre-assembled and factory-tested.
20ft Container: Max settler height: 2.0m | Plate pack length: 3-4m | Width: 1.8-2.0m | Sludge zone: 0.8m depth
40ft Container: Max settler height: 2.0m | Plate pack length: 8-9m | Width: 1.8-2.0m | Sludge zone: 0.8m depth
| Sensor | Type | Range | Output |
|---|---|---|---|
| Feed Flow | Electromagnetic | 0-50 m³/hr | 4-20mA |
| Inlet pH | Glass electrode | 0-14 pH | 4-20mA |
| Sludge Level | Ultrasonic | 0-2m | 4-20mA |
| Effluent Turbidity | Optical | 0-100 NTU | 4-20mA |
| Chemical Tank Level | Hydrostatic | 0-1.5m | 4-20mA |
Calculate plate settler sizing for your flow
Self-contained filtration plants in ISO containers for water polishing, solids removal, and pre-treatment. Systems include self-cleaning filters, multimedia filters, or activated carbon filters with automated backwash, integrated pumping, and PLC controls.
Filter Vessel Height: Max 2.0m for 20ft/40ft standard | Filter Diameter: Up to 1.5m in 20ft, up to 2.0m in 40ft | Backwash Tank: 1-3 m³ capacity
| Sensor | Type | Range | Output |
|---|---|---|---|
| Inlet Pressure | Pressure transmitter | 0-6 bar | 4-20mA |
| Outlet Pressure | Pressure transmitter | 0-6 bar | 4-20mA |
| Differential Pressure | DP transmitter | 0-1 bar | 4-20mA |
| Backwash Tank Level | Ultrasonic | 0-2m | 4-20mA |
| Flow Rate | Electromagnetic | 0-100 m³/hr | 4-20mA |
Find the right filtration configuration
Compact advanced biological treatment plants in ISO containers for removing dissolved organics, BOD, COD, and nutrients. Systems include MBBR or SBR technology with integrated aeration, settling, and decanting - all pre-commissioned and ready for operation.
40ft High Cube Required: Reactor height: 2.0-2.4m | Settler/decanter: 1.5-2.0m | Aeration blowers: mounted externally or on roof | Control room: 2m x 2m section
| Sensor | Type | Range | Output |
|---|---|---|---|
| Dissolved Oxygen | Optical/Amperometric | 0-20 mg/L | 4-20mA |
| pH | Glass electrode | 0-14 pH | 4-20mA |
| Temperature | PT100 | 0-50°C | 4-20mA |
| MLSS | Optical | 0-20 g/L | 4-20mA |
| Level | Ultrasonic | 0-3m | 4-20mA |
| Air Flow | Thermal mass | 0-50 m³/min | 4-20mA |
Validate advanced biological treatment for your effluent
Self-contained sludge dewatering systems in ISO containers for reducing sludge volume at remote sites and temporary projects. Complete with screw press, polymer preparation, and cake handling - all pre-assembled with integrated controls.
Screw Press Length: 2.5-4.5m depending on capacity | Polymer Station: 1.5m x 1.0m footprint | Cake Conveyor: Extends 1-2m outside container | Access: 1.5m clearance for maintenance
| Sensor | Type | Range | Output |
|---|---|---|---|
| Sludge Flow | Electromagnetic | 0-10 m³/hr | 4-20mA |
| Polymer Flow | Ultrasonic | 0-20 L/hr | 4-20mA |
| Floc Tank Level | Ultrasonic | 0-1.5m | 4-20mA |
| Screw Torque | Load cell | 0-100% | 4-20mA |
| Polymer Tank Level | Hydrostatic | 0-1.5m | 4-20mA |
Calculate cake solids and disposal benefits
Pre-engineered oil-water separation plants in ISO containers for rapid deployment at oil & gas facilities, industrial sites, and marine operations. Complete with API separators, CPI units, coalescing media, and sludge handling.
Separator Length: 4-10m depending on capacity | Coalescer Height: Max 1.8m | Oil Collection: 0.5m top section | Sludge Zone: 0.5m bottom section
| Sensor | Type | Range | Output |
|---|---|---|---|
| Inlet Flow | Electromagnetic | 0-50 m³/hr | 4-20mA |
| Oil Level | Capacitive | 0-500mm | 4-20mA |
| Sludge Level | Ultrasonic | 0-1m | 4-20mA |
| Oil-in-Water | UV fluorescence | 0-30 ppm | 4-20mA |
ATEX-certified options available for hazardous areas
Complete inlet works solutions in ISO containers for rapid deployment. Includes rotary drum screens, screw conveyors, compactors, and washing systems - all pre-wired and ready for operation.
Drum Screen Diameter: 0.6-1.5m | Screen Length: 1.5-3m | Conveyor Length: 2-4m (may extend outside) | Access: Side door for maintenance
| Sensor | Type | Range | Output |
|---|---|---|---|
| Inlet Level | Ultrasonic | 0-2m | 4-20mA |
| Differential Level | DP switch | 0-500mm | Digital |
| Screen Speed | Encoder | 0-10 rpm | 4-20mA |
Configure your mobile inlet works
Engineered process trains for biological and non-advanced biological treatment in ISO containers
Full catalogue with platform specs, flow/TSS sizing, and 13 Process options from primary-only to hybrid non-biological systems.
View CatalogueHigh-rate dissolved air flotation with chemical coagulation for medium-TSS, FOG-laden wastewaters. 10–200 m³/h.
View Physico-Chemical DAFMoving bed biofilm, membrane bioreactor, and sequencing batch reactor systems for high-BOD wastewater with nutrient removal.
View Biological SystemsOzone/UV and Fenton oxidation for recalcitrant COD, colour removal, pharmaceutical residuals, and surfactants.
View Advanced OxidationElectrocoagulation + filtration for heavy metals, emulsified oils, colloidal solids, and landfill leachate pre-treatment.
View ElectrocoagulationRO, NF, and UF membrane systems for TDS reduction, water recovery, and ZLD pre-concentration without biological pre-treatment.
View Membrane ConcentrationInternational Standards & Regional Compliance
Why Choose Containerised Systems
From order to operation in days, not months. Minimise downtime and start treating immediately
Eliminates expensive concrete foundations and building construction
All systems fully assembled and tested before delivery
Can be relocated as needs change
Fixed scope with no hidden costs
Pre-programmed controls reduce training requirements
Where Containerised Systems Excel
Construction sites, mining camps, remote operations
Quickly add treatment capacity during peak periods
Temporary treatment during main facility maintenance
Areas without infrastructure for conventional plants
Full-scale process validation before permanent installation
Rapid deployment for treatment system failures
From Delivery to Operation
Level ground, utilities
Container transport
Crane placement
Inlet/outlet/power
Commissioning
Integrated process tanks and vessels for complete treatment systems.
